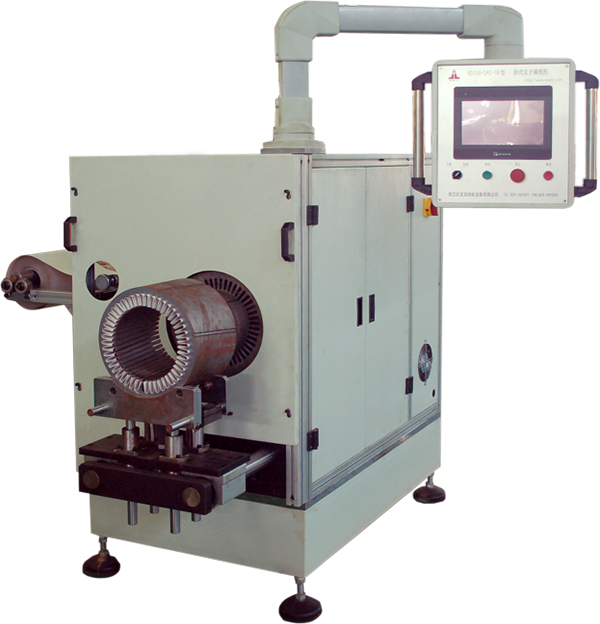

DFC-1W型 臥式定子插紙機
CZJ-1W Rotor Paper Inserting Machine horizontal type
本機適用于中大型感應電機定子槽絕緣紙的自動插入。采用進口PLC程控，彩色觸摸屏控制，可設定緩升起動時間、減速時間。各動作均用機械聯動設計及間隙送紙機構，有兩端自動翻邊，自動定長切斷，自動成型，自動插入，操作簡單，更換模具方便。
Suitable for insulation paper iserting for medium or large sized stator of induction motor. Imported PLC control, color touch screen display, can set slow start time, deceleration time. The movements are designed with mechanical linkage and gap feeding mechanism, with both ends of the automatic flange, automatic fixed-length cut off, automatic molding, automatic inserting, simple operation, easy to replace the mold.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
| 總功率Total power | 3kw |
| 定子疊厚Core thickness | ≤40~200mm/≤80~300mm |
| 定子內徑Stator ID | Φ70~160mm/Φ70~260mm |
| 定子外徑Stator OD | ≤Φ220 mm/≤Φ300 mm |
