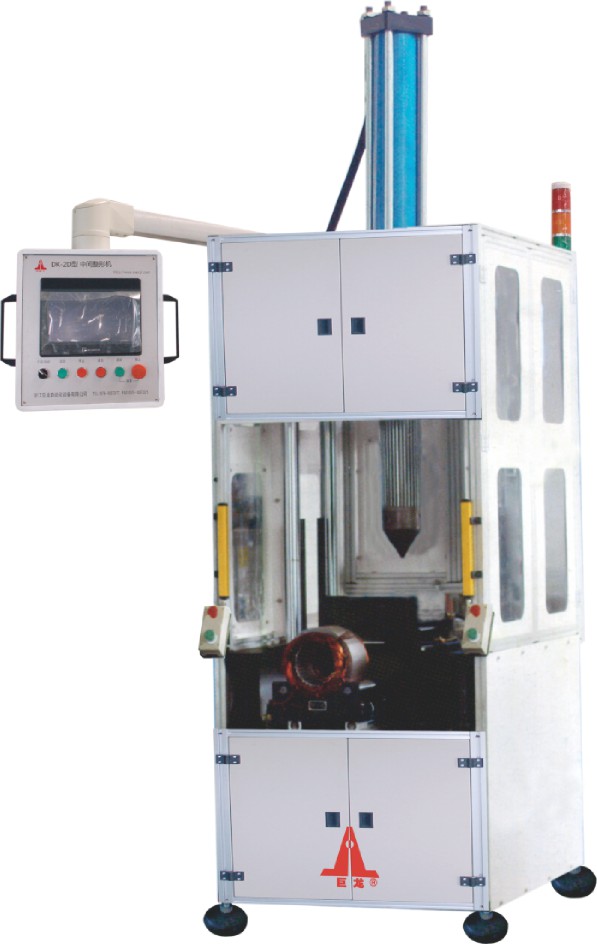

DK-2D型 中間整形機
DK-2D Pre-forming Machine
本機適用于嵌線后電機線圈的端部整形。采用進口PLC程控，彩色觸摸屏控制，液壓系統作為主動力，臥式結構設計，工位自動進出，內漲、外包，端部自動整形，保壓時間可調。
This machine is suitable for pre-forming the end of the motor coil after coil inserting. Adopting imported PLC programmable control, color touch screen control, hydraulic system as the driving force, horizontal structure design, automatic in and out of the station, inner rising, outsourcing, end automatic shaping, compressing time adjustable.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
總功率Total power |
5kw |
| 定子疊厚Core thickness | 16~160mm/50~300mm |
| 定子內徑Stator ID | Φ30~120mm/Φ50~200mm |
| 定子外徑Stator OD | ≤Φ300 mm |
