(劈拉自然成形)SC-3B型 扁線去漆皮自動成形機
SC-3B Stater Automatic Flat Wire Shaping and Stripping Machine

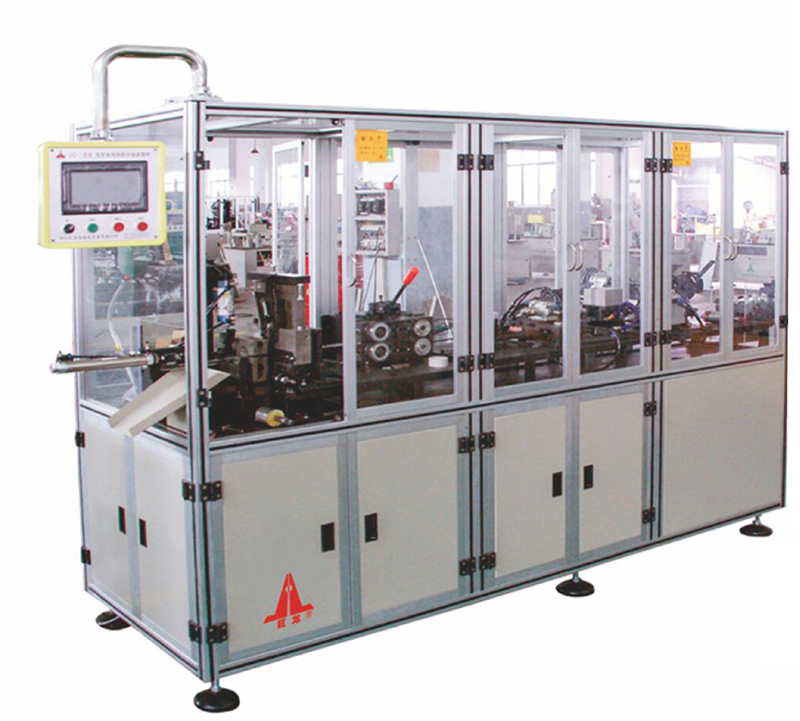

本機適用于汽車起動電機、電樞繞組自動成形的專用設備，并在原有基礎上增加了線頭自動剝漆功能。采用三菱PLC控制，觸摸屏修改參數，伺服電機或氣缸定長送線，由扁線校直機構、送線機構、四面去漆皮機構、切斷機構、臂拉成形機構、產品拉出機構等組成，自動化程度高，使用簡單方便。
Suitable for automotive starter motor, armature winding automatic forming of special equipment, and on the basis of the original increase in the thread automatically stripping paint function. Mitsubishi PLC control, touch screen to modify parameters, servo motor or cylinder fixed length to send lines, by the flat line straightening agencies, send line agencies, four sides to the patent leather body, cut off institutions, arm pull forming institutions, product pull out , A high degree of automation, easy to use.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa |
|
總功率Total power |
3kw |
| 送線長度Feeding length |
180~400 mm |
| 剝線長度Stripped length |
≤15 mm |
| 展開長度Coil length |
≤280mm |
| 線徑范圍Wire Range |
≤8mm2 |
| 生產效率Productivity |
15~18根/min |
