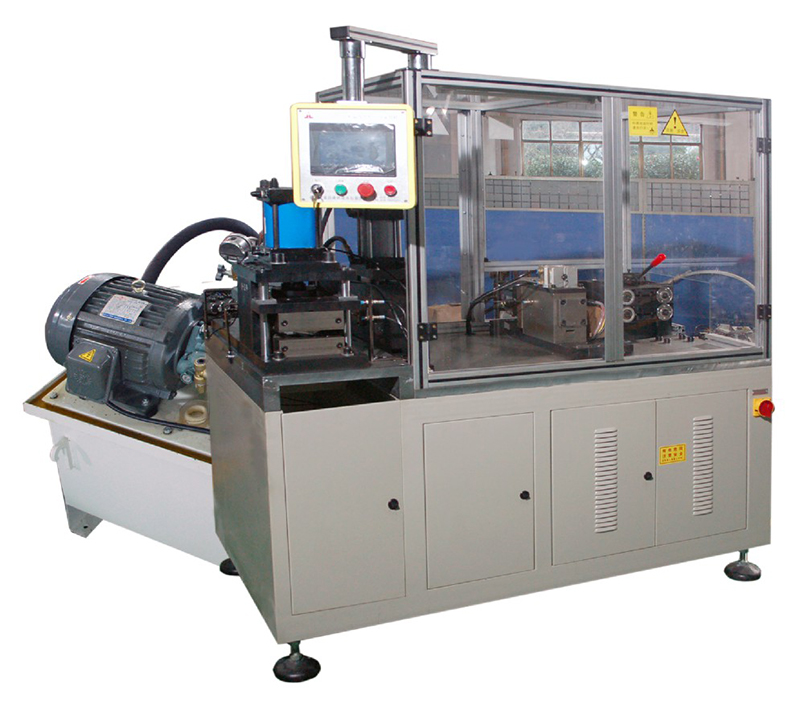

（液壓強迫沖壓成形）SC-4B型 電樞漆包扁線繞組成形機
SC-4B Armature Flat Wire Automatic Shaping Machine
本機適用于新能源硬繞組電機扁線自動定長，自動剝漆皮，自動切斷，自動成形的專用設備，采用PLC控制程序，集成液壓站系統控制成形切斷，彩色觸摸屏修改參數，有獨立的放線機構，可更換成形模具，自動化程度高。
This machine is the special equipment suitable for new energy hard winding motor flat wire shaping. It has the functions of wire automatic fixed-length, automatic peeling, automatic cutting, automatic forming. This machine uses PLC and integrated hydraulic station system to control forming and cutting, color touch screen to modify parameters, independent wire placement mechanism, replaceable forming mold, high degree of automation.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
液壓壓力Hydraulic pressure |
8MPa |
|
電機功率Motor power |
2.2kw |
| 生產效率Productivity |
15~18根/min |
| 最大線規Maximum wire gauge |
26mm2 |
| 送線方式Wire feeding method |
伺服Servo |
| 成形方式Forming method |
液壓強迫成形 |
| 換模方式Tooling replacement method |
整體工裝Overall tooling |
