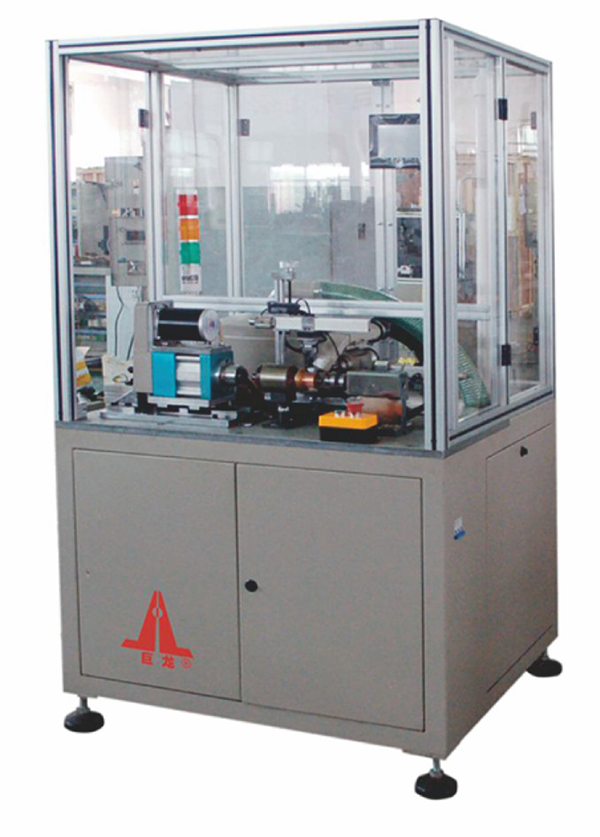

HSK-4型 換向器自動開槽機
HSK-4 Model Commutator Automatic Grooving Machine
本機適用于轉子換向器粗車后云母槽的自動逐槽跟蹤下刻開槽的專用設備。采用高精度進口光纖檢測逐槽跟蹤槽位，自動糾正，自動定位槽位，伺服電機或步進電機控制分度，開槽準確，進口PLC控制，彩色觸摸屏修改參數，自動下刻、自動轉位、精度準確，速度快，生產效率高。
Suitable for the rotor commutator Rough mica slot after the automatic slot tracking slotting under the special equipment.High-precision imported fiber detection slot-by-slot tracking, automatic correction, automatic positioning slot, servo motor or stepper motor control indexing, slotting accurate, imported PLC control, color touch screen modify parameters, automatic engraved, automatic Translocation, accuracy,fast, high efficiency.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7 MPa |
|
總功率Total power |
3kw |
| 主軸轉速Spindle speed |
0~8000r/min |
| 換向器外徑Commutator OD |
≤Φ20~Φ50mm |
| 槽數范圍Slots |
3~99 |
| 轉子外徑Rotor OD |
≤Φ100mm
|
| 開槽寬度Slot width |
0.2~1.0mm |
