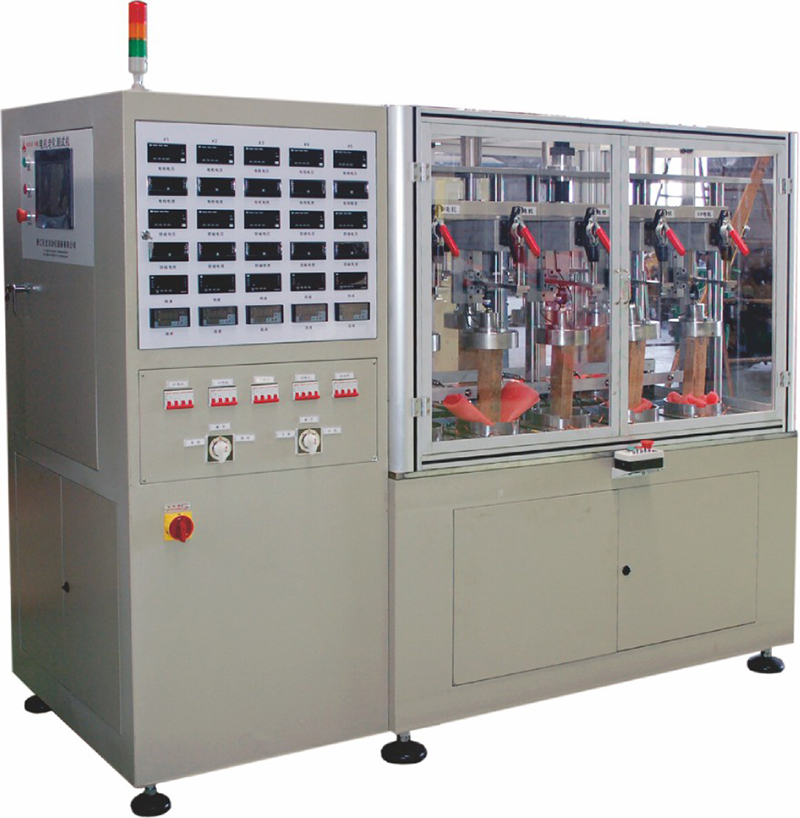

DL-10型 電機老化測試機
DL-10 Motor Aging Machine
本機適用于起動電機整機的碳刷換向器旋轉老化磨合及測試的專用設備�？蓪�(duì)它勵或串勵直流電機進行老化，可同時最多10個電機。設置多段電壓、老化時間,它勵串勵切換開關,正反轉切換開關。各電機獨立電樞、勵磁電壓電流檢測，轉速檢測，溫度 測。各電機獨立開關。
This machine is the special equipment suitable for rotary aging running of carbon brush and commutator of starting motor and has test function.It can age excitation or series-excited DC motors, and can simultaneous aging up to 10 motors. This machine can set multi-segment voltage and aging time. This machine uses excitation and series switch, positive and negative switch.It can test independent armature and excitation of voltage and current detection of each motor, speed detection, temperature detection. Each motor is independently switched.
技術參數/Technicai Parameters
| 電樞電源Armature power supply | AC380V 55kVA |
|
勵磁電源1 Excitation power supply |
AC220V 3kVA |
|
勵磁電源2Excitation power supply |
AC220V 1kVA |
|
控制電源Control power supply |
AC220V 1kVA |
|
電樞電源輸出Armature power supply output |
DC110V 500A |
|
勵磁電源1輸出Excitation power supply output |
DC50V 60A |
|
勵磁電源2輸出Excitation power supply output |
DC30V 60A |
|
工位數workstations |
10 |
|
特殊規格可定制Special specifications can be customized |
|
