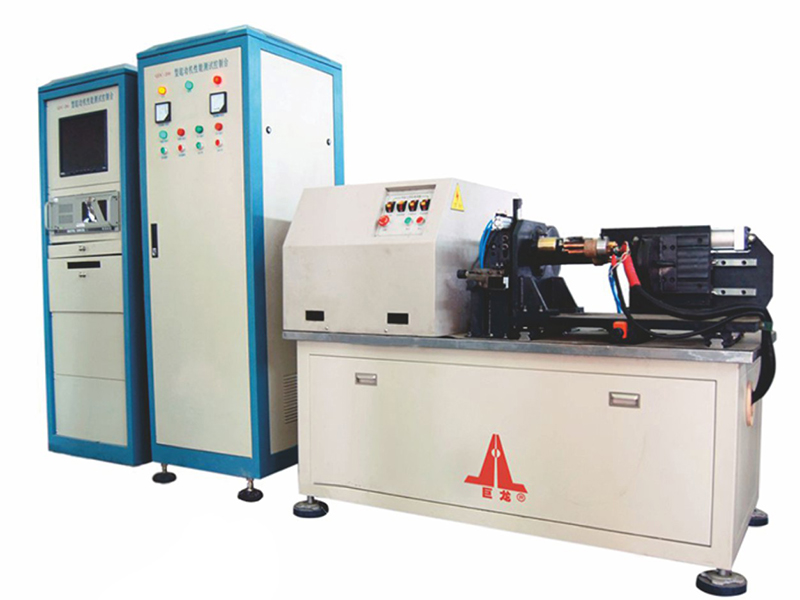

QDC-200型 起動機性能測試臺
QDC-200 Model Starting Motor Testing Platform
適用于汽車起動電機的性能測試，打印并儲存特性曲線及參數，有吸合電壓、釋放電壓、空載性能、負載性能、制動性能、斷電性能、超速試驗。本裝置有機械裝夾、磁粉制動器負載裝置、開關式高頻直流模擬電源、計算機、顯示器、打印機及數據采系統組成，可單步和自動測試，電腦控制，數據采集處理并打印輸出，自動判斷被測電機是否合格。
Suitable for testing the performance of car starter motor, printing and storage of characteristic curves and parameters, a pull voltage, release voltage, no-load performance, load performance, braking performance, power performance, speeding test. The device has mechanical clamping, magnetic brake load device, switching high frequency DC analog power supply, computer, monitor, printer and data acquisition system, single step and automatic test, computer control, data acquisition and printout, Automatically determine whether the measured motor is qualified.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
輸出電流Output current |
≤2000A |
| 輸出電壓Output voltage |
DC 0~30V |
|
制動電流Braking current |
0~1999A |
|
起動機轉速Starter speed |
0~19999r/min |
|
起動機扭矩Starter torque |
0~199.9N.m |
