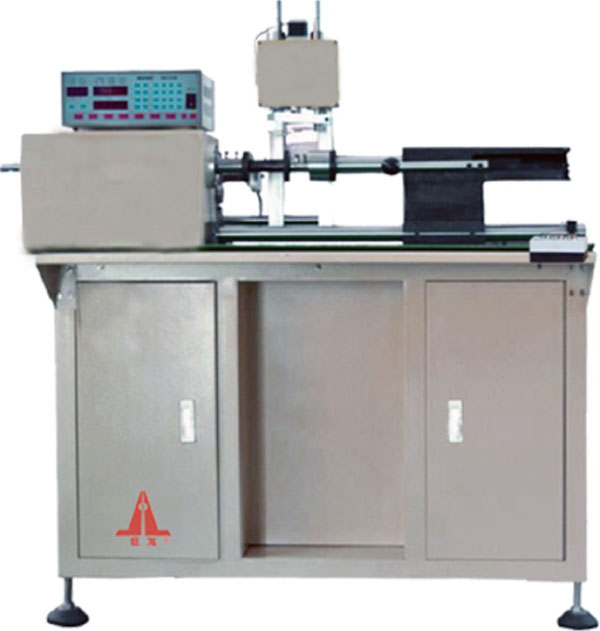

PR-1型線圈排繞機
PR-1 Magnetic Coil Winding Machine
本機適用于各類汽車發電機爪極轉子線圈、電磁閥、變壓器等線圈排繞的專用設備。采用三菱PLC程控，CNC控制輸入，模擬人手自動排線，可設定排繞距離、排繞圈數、排繞線徑、排繞速度，自動完成排線，生產效率高。
Suitable for all kinds of automotive generators claw pole rotor coils, solenoid valves, transformers and other coils of special equipment. Mitsubishi PLC program control, CNC control input, analog manual automatic cable, you can set the routing distance, the number of laps, wire diameter, winding speed, automatic completion of cable, high production efficiency.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
總功率Total power |
2kw |
|
繞線速度Winding speed
|
0~1400r/min |
| 可繞線徑Wire range | Φ0.4~2.5mm |
|
最大卷徑Max. roll diameter |
200mm |
| 最大幅寬Max. width |
210mm |
