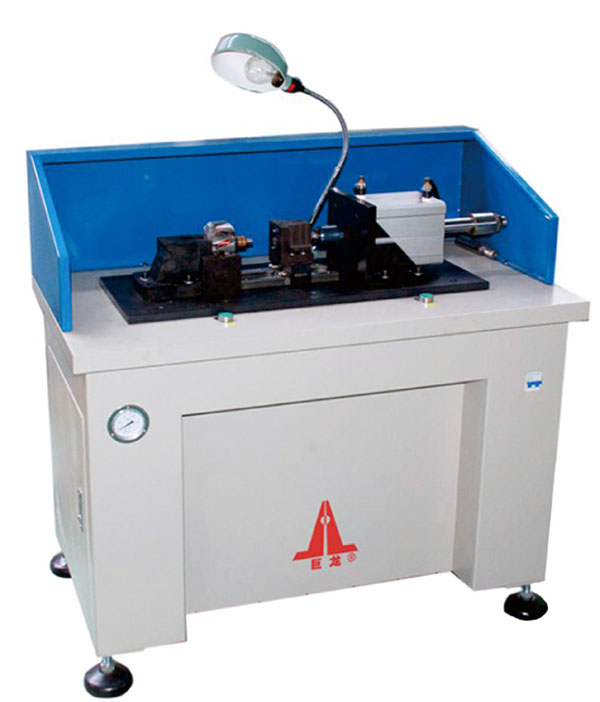

JQ-125型 集電環壓入機
JQ-125 Model Commutator Pressing Machine
本機適用于汽車發電機轉子集電環的自動壓入。采用直線導軌水平裝置，氣缸水平加壓，能準確對準集電環與中心軸位置，以壓縮空氣作為動力源，工作無噪音污染，工作速度可以調節，雙按鈕開關，設有工作壓力調節裝置，適用于不同產品壓制，操作簡單方便。
Suitable for automotive generator rotor slip ring into the automatic.The use of linear guide level device, the cylinder level of pressure, can accurately align the collector ring and the central axis position to compressed air as a power source, work without noise pollution, work speed can be adjusted, double button switch, with working pressure Adjustment device, suitable for different products to suppress, easy to operate.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
1kw |
| 工作行程Working stroke | 150mm |
| 轉子外徑Rotor OD |
用戶定制Customized |
|
|
|
