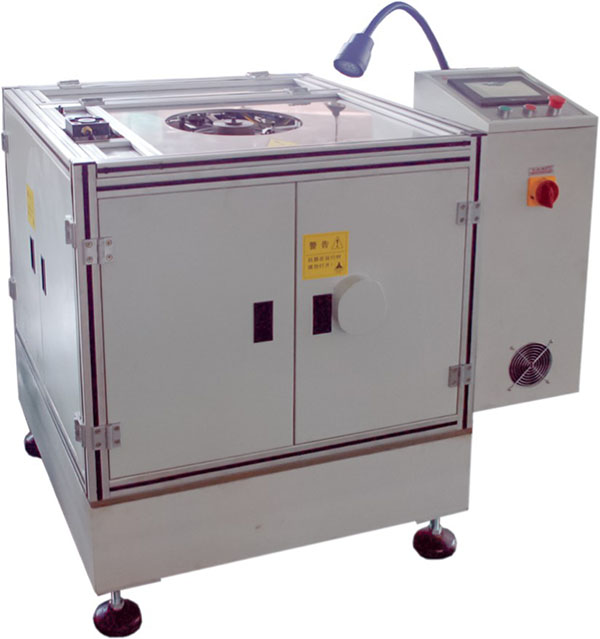

XB-1GZ型 定子線圈串模排線機
XB-1GZ Model Coil Winding and Arraying Machine
適用于各種多段線圈串模連續繞制的自動排繞。采用三菱PLC程控，中文液晶顯示，變頻無級調速，只需輸入模寬度、匝數、間隔等參數，自動完成每槽排繞，可設定各槽不同匝數，操作簡單，使用方便。
Suitable for a variety of multi-stage coil series of continuous winding of the automatic winding.Mitsubishi PLC program, the Chinese LCD display, variable frequency stepless speed regulation, just enter the mold width, turns, spacing and other parameters, automatic completion of each slot, you can set the different slot number of turns, simple operation.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
電機功率Motor Power |
2.2kw |
| 主軸轉速Spindle speed | 1400r/min |
| 回轉半徑Radius of gyration |
200mm |
|
回轉直徑Steady turning diameter |
320mm |
| 模芯桿Mold core | 18X18mm / 25X25mm |
| 可繞線徑Wire range |
Φ0.17~Φ1.5mm |
