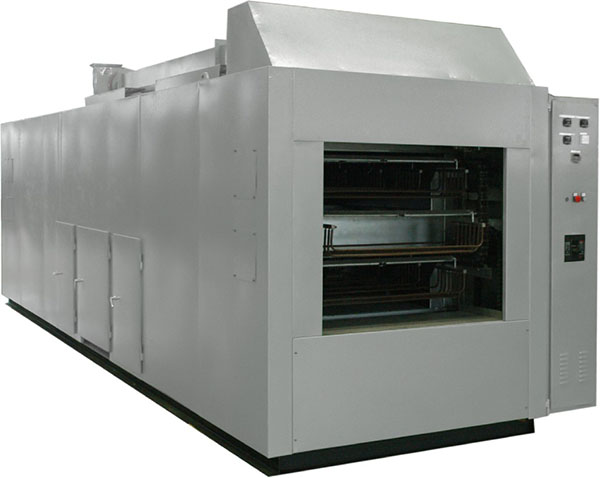

DLZ-30型 定子自動沉浸機
DLZ-30 Continuous Automatic Stator Insulation Varnish Impregnation Machine
適用于感應電機定子、電器線圈、小型變壓器的自動浸絕緣漆并烘干處理。采用吊籃連續式工作方式，工件按設定工藝技術參數，自動完成預熱、浸漆、滴干、凝膠、固化工序，三菱PLC程控，觸摸屏顯示，操作方便，生產效率高。
Suitable for induction motor stator, electrical coil, small transformer automatic dip insulating paint and drying treatment.The continuous working method of the basket, the workpiece according to the set process technology parameters, automatic completion of preheating, dipping, dripping, gel, curing process, Mitsubishi PLC program control, touch screen display, easy operation and high production efficiency.
技術參數/Technicai Parameters
|
電源電壓Supply voltage |
AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5～0.7Mpa |
|
總功率Total power |
80kw |
| 吊籃個數No.of basket |
30 |
|
溫度范圍Temperature range |
0~200℃ |
|
吊籃尺寸Basket size |
850×320×1200mm |
| 特殊規格可定制Special specifications can be customized | |
