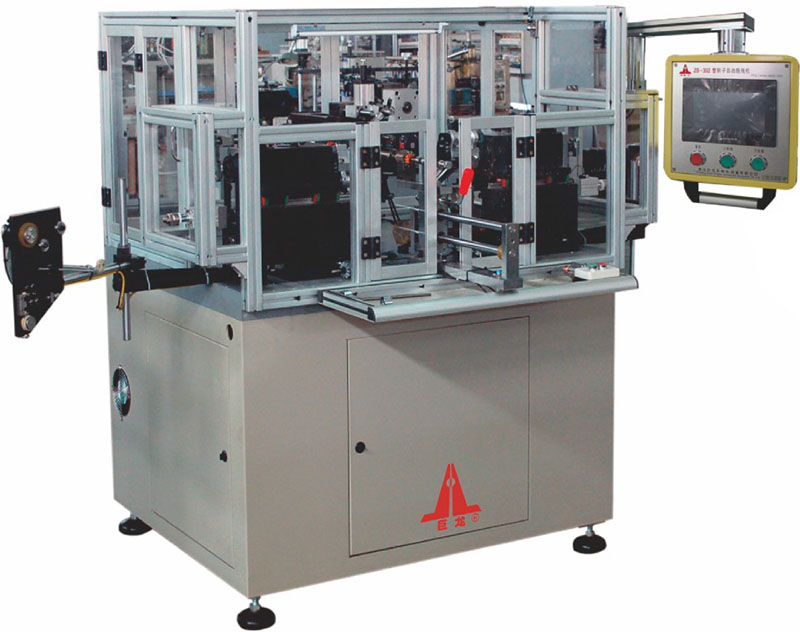

（無剪刀）ZB-301型 轉子自動繞線機
ZB-301 Automatic Rotor Wire Winding Machine
適用于偶數槽電機帶鉤換向器轉子的自動繞線。采用三菱三伺服系統，PLC程控，彩色觸摸屏顯示，工件推入夾頭夾緊、自動定位、分度、繞線、掛鉤、自動拉斷，所有流程連續工作，采用脫卸式更換工裝，漲力松緊可調，繞線均勻，人工上下料，生產效率高。
It is suitable for automatic winding of the rotor of a commutator with slotted motor.Automatic alignment, indexing, winding, hooking, automatic pull off, all processes continuous work, the use of detachable replacement tooling, tension force elastic Adjustable, even winding, manual loading and unloading, high production efficiency.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | Ac380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
3kw |
| 疊片厚度Lamination thickness | 25~75mm |
| 換向器外徑Commutator OD |
Φ20~Φ50mm |
| 轉子直徑Rotor Diameter |
Φ20~Φ90mm |
| 軸徑Shaft diameter |
Φ3~Φ12 |
| 線徑Wire |
Φ0.15~Φ1.05 |
