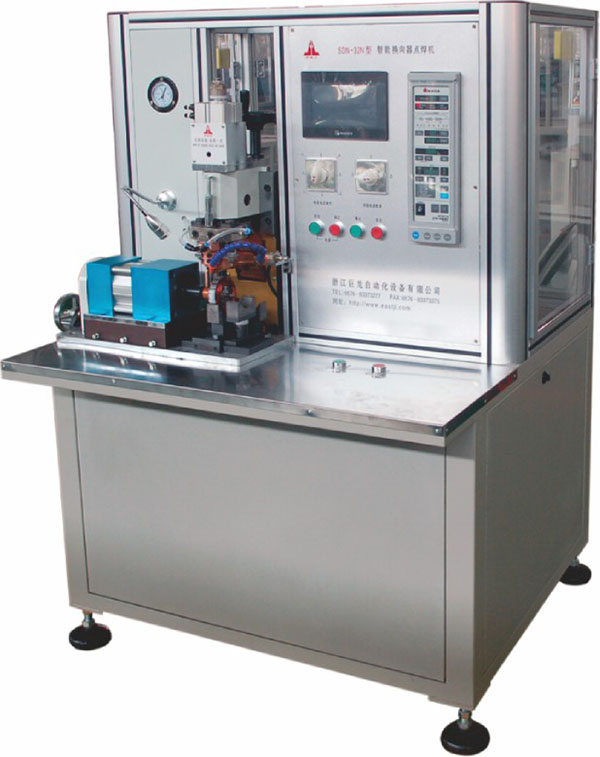

（米亞基控制交流焊接電源）SDN-32N型 智能換向器自動點焊機
SDN-32N Automatic Commutator Spot Welding Machine
本機適用帶鉤或開槽電機換向器與轉子導線的自動焊接。采用三菱PLC程控，彩色觸摸屏設定參數，進口米亞基焊接控制器聯合控制，三段通電方式，具有電流緩升、緩降功能，次級定電流或定功率反饋控制，焊接電流穩定，有焊接電流過小停機報警設置功能，另可記憶15種不同焊接規范，配有內置冷卻水箱，進口電磁閥控制焊接氣缸，快速穩定，所有動作一次完成，操作簡單，焊接質量高。
This machine is suitable for automatic welding of the commutator and the rotor wire with hook or slotted motor.Mitsubishi PLC programmable control, color touch screen set parameters, imported Miyaji welding controller joint control, three sections of power, with the current rise, slow down function, secondary constant current or constant power feedback control, welding current stability, Welding current is too small shutdown alarm setting function, and the other can remember 15 different welding specifications, with built-in cooling water tank, imported solenoid valve control welding cylinder, fast and stable, all actions once completed, simple operation, high welding quality.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
電流極數Standard current ratings |
16 |
| 額定容量Rated Capacity | 32kVA |
| 可焊線徑Wire diameter |
Φ0.12~Φ1.2mm |
| 轉子直徑Rotor Diameter |
≤Φ90mm |
|
轉子軸徑Rotor shaft diameter |
≤Φ17mm |
|
換向器直徑Commutator diameter |
≤Φ40mm |
