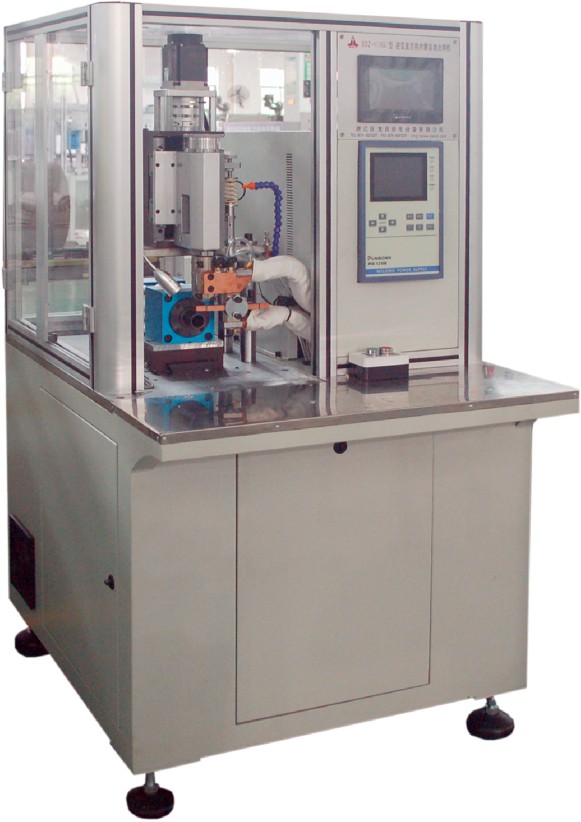

（國產逆變直流焊接電源伺服加壓)SDZ-130GS型 換向器自動點焊機
SDZ-130GS DC output Automatic Commutator Spot Welding Machine
本機是專為電機換向器與較粗電樞繞組連接的一種專用焊接設備。采用進口PLC控制器和觸摸屏顯示器控制焊機動作，伺服電機力矩控制方式加壓，通過同步帶輪帶動絲桿控制焊接，在單個焊點可分別設定壓力，配置大功率國產逆變焊機聯合控制、可定電流、定功率、定電壓等控制，工件機械定位對槽，可設定角度補償，所有動作一次完成，性能優越，焊接質量高。
This machine is a special welding equipment designed for motor commutator and thicker armature winding connection .Imported PLC controller and touch screen display control welding action, servo motor torque controls pressure, ball screw driven by synchronous pulley controls welding, welding points can be set in a single pressure, the configuration of high-power domestic joint inverter welding control, can set constant current, constant power, constant voltage，can be selected by the reasonable choice of welding current to achieve high-quality welding, the workpiece mechanical positioning on the slot, angle compensation can be set, all actions once completed, superior performance, high-quality welding.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
額定容量Rated Capacity |
0~50kVA |
| 焊接電流Welding current | 10000A |
| 轉子直徑Rotor Diameter |
≤Φ90mm |
| 可焊線徑Wire diameter |
0.12~1.2mm |
| 軸徑Shaft diameter |
≤Φ17mm |
| 換向器直徑Commutator diameter |
≤Φ40mm |
