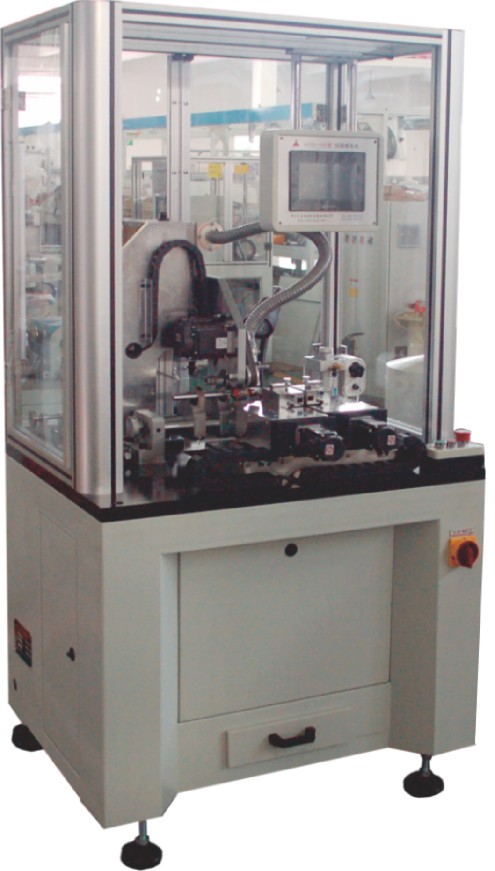

NHJS2-100型 四伺服雙刀換向器精車機
NHJS2-100 Four Servo Commutator Turning Machine
本機適用于汽車電機、摩托車起動電機、電動工具串激電機、永磁電機、直流伺服電機的高精度自動車削。采用四個三菱伺服電機，進口PLC程控，彩色觸摸屏控制，走刀和進刀位置可精確設定，車削次數可多次進行，進刀量和走刀量在觸摸屏上顯示，伺服走刀速度均勻，精度高，硬質合金V形塊支撐轉子軸，軸承檔有自動噴油裝置，配置高硬度寶石刀頭，皮帶摩擦轉子外圓自動車削，電器機械互鎖設計，安全可靠，所有動作一次完成，人工上下工件，操作簡單方便。
This machine is suitable for high-precision automatic turning of automobile motor, motor starter motor, power tool series motor, permanent magnet motor and DC servo motor.Using four Mitsubishi servo motor, imported PLC program, color touch screen control, feed and feed position can be set accurately, the number of turning can be carried out multiple times, the amount of feed and the amount of knife in the touch screen display, the servo speed uniformity , High precision, carbide V-shaped blocks support the rotor shaft, the bearing stalls are automatic fuel injection device, configuration high hardness gemstone head, belt friction rotor cylindrical automatic turning, electrical mechanical interlock design, safe and reliable, all actions once completed , Manual up and down the workpiece, easy to operate.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC380±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
4kw |
| 轉子外徑Rotor OD | Φ20~Φ80mm |
|
車削粗糙度Turning roughness |
Ra0.4 |
| 換向器長度Commutator length |
≤30mm |
| 換向器直徑Commutator diameter |
5~40mm |
| 工件線速度Workpiece line speed |
0~600m/min |
| 轉子軸徑Rotor shaft diameter |
3~20mm |
