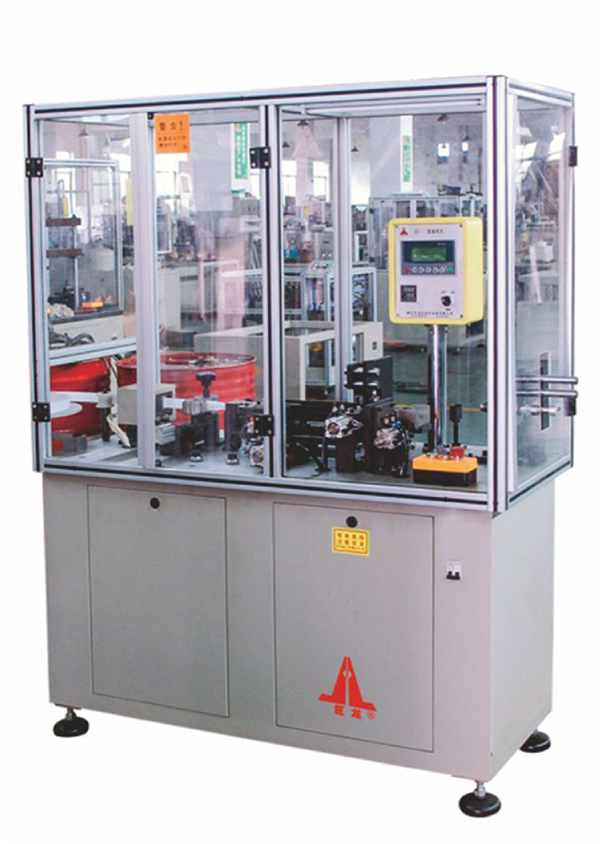

(臥式)ZZ-3型 S/B形自動插紙機
ZZ-3 S/B Shaped Paper Auto-Inserting Machine
本機適用于起動電機較長轉子鐵芯的S形絕緣紙成形插紙的專用設備。采用三菱PLC程控，中文顯示器或觸摸屏修改參數，自動定長，送紙，加熱，成形，切斷，插紙一次完成，操作簡單，方便，手動上下工件，一人可操作多臺設備。
This machine is suitable for inserting S-shaped insulation paper of longer rotor core of starte.Heating, forming, cutting, insert the paper once to complete, simple, convenient, manual loading and unloadingthe workpiece, one person can operate multiple devices.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
總功率Total power |
2kw |
| 鐵芯厚度Core thickness | ≤Φ100mm |
| 轉子外徑Rotor OD |
≤Φ120mm |
| 適用槽數Slots | 3~99 |
